MAXIMUM ELECTRIC CURRENT:
A.W.G. |
22 | 20 | 18 | 16 | 14 | 12 | 10 | 8 |
AMP. |
9 | 12 | 17 | 18 | 30 | 35 | 50 | 70 |
MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.

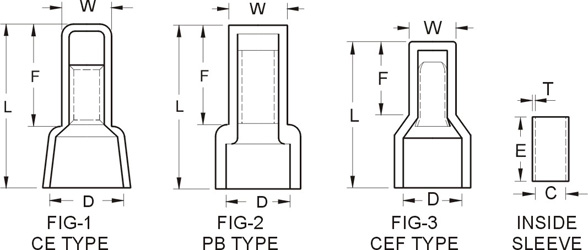

CE & PB TYPE INSIDE SLEEVE IS COPPER TUBE. CEF TYPE INSIDE SLEEVE IS STEEL DRAWN.
|
Product List (Total: 20 records) |
Data Source Page NO.: P.281,
WIRE
RANGE
A.W.G.
mm2 |
ITEM NO. |
Standard |
DIMENSION inch(mm) |
FIG |
Q'TY
BOX |
W
|
F
|
L
|
D
|
E
|
T
|
C
|
22-16
A.W.G.
1.25
mm2
|
|
UL CSA |
.197
5
|
.535
13.6
|
.827
21
|
0.315
8.000
|
.276
7
|
.02
.5
|
.091
2.3
|
1 |
1000 |
16-14
A.W.G.
2
mm2
|
|
UL CSA |
.217
5.5
|
.547
13.9
|
.827
21
|
0.315
8.000
|
.276
7
|
.018
.45
|
.122
3.1
|
1 |
1000 |
12-10
A.W.G.
5.5
mm2
|
|
UL CSA |
.295
7.5
|
.575
14.6
|
1.004
25.5
|
0.394
10.000
|
.295
7.5
|
.028
.7
|
.157
4
|
1 |
500 |
8
A.W.G.
8
mm2
|
|
UL CSA |
.37
9.4
|
.709
18
|
1.173
29.8
|
0.472
12.000
|
.335
8.5
|
.049
1.25
|
.173
4.4
|
1 |
250 |
22-16
A.W.G.
1.25
mm2
|
|
UL CSA |
.197
5
|
.346
8.8
|
.598
15.2
|
0.236
6.000
|
.276
7
|
.02
.5
|
.091
2.3
|
2 |
1000 |
16-14
A.W.G.
2
mm2
|
|
UL CSA |
.228
5.8
|
.346
8.8
|
.598
15.2
|
0.248
6.300
|
.276
7
|
.018
.45
|
.122
3.1
|
2 |
1000 |
12-10
A.W.G.
5.5
mm2
|
|
UL CSA |
.287
7.3
|
.346
8.8
|
.701
17.8
|
0.362
9.200
|
.295
7.5
|
.028
.7
|
.157
4
|
2 |
500 |
8
A.W.G.
8
mm2
|
|
UL CSA |
.37
9.4
|
.465
11.8
|
.866
22
|
0.465
11.800
|
.315
8
|
.049
1.25
|
.197
5
|
2 |
250 |
22-16
A.W.G.
1.25
mm2
|
|
|
.197
5
|
.366
9.3
|
.602
15.3
|
0.295
7.500
|
.295
7.5
|
.015
.38
|
.093
2.35
|
3 |
1000 |
16-14
A.W.G.
2
mm2
|
|
|
.224
5.7
|
.398
10.1
|
.728
18.5
|
0.315
8.200
|
.295
7.5
|
.014
.35
|
.118
3
|
3 |
1000 |
12-10
A.W.G.
5.5
mm2
|
|
|
.311
7.9
|
.378
9.6
|
.787
20
|
0.402
10.200
|
.335
8.5
|
.016
.4
|
.197
5
|
3 |
500 |
8
A.W.G.
8
mm2
|
|
|
.339
8.6
|
.5
12.7
|
.945
24
|
0.488
12.400
|
.335
8.5
|
.016
.4
|
.232
5.9
|
3 |
250 |
22-16
A.W.G.
1.25
mm2
|
|
|
.197
5
|
.535
13.6
|
.827
21
|
0.315
8.000
|
.268
6.8
|
.014
.35
|
.102
2.6
|
1 |
1000 |
16-14
A.W.G.
2
mm2
|
|
|
.217
5.5
|
.547
13.9
|
.827
21
|
0.315
8.000
|
.268
6.8
|
.014
.35
|
.13
3.3
|
1 |
1000 |
12-10
A.W.G.
5.5
mm2
|
|
|
.295
7.5
|
.575
14.6
|
1.004
25.5
|
0.394
10.000
|
.287
7.3
|
.018
.45
|
.177
4.5
|
1 |
500 |
8
A.W.G.
8
mm2
|
|
|
.37
9.4
|
.709
18
|
1.173
29.8
|
0.472
12.000
|
.327
8.3
|
.037
.95
|
.197
5
|
1 |
250 |
22-16
A.W.G.
1.25
mm2
|
|
|
.197
5
|
.346
8.8
|
.598
15.2
|
0.236
6.000
|
.268
6.8
|
.014
.35
|
.102
2.6
|
2 |
1000 |
16-14
A.W.G.
2
mm2
|
|
|
.228
5.8
|
.346
8.8
|
.598
15.2
|
0.248
6.300
|
.268
6.8
|
.014
.35
|
.13
3.3
|
2 |
1000 |
12-10
A.W.G.
5.5
mm2
|
|
|
.287
7.3
|
.346
8.8
|
.701
17.8
|
0.362
9.200
|
.287
7.3
|
.018
.45
|
.177
4.5
|
2 |
500 |
8
A.W.G.
8
mm2
|
|
|
.37
9.4
|
.465
11.8
|
.866
22
|
0.465
11.800
|
.327
8.3
|
.037
.95
|
.197
5
|
2 |
250 |
Data Source Page NO.: P.281,
|
|
|
|
