MAXIMUM ELECTRIC CURRENT:
A.W.G. |
22 | 20 | 18 | 16 | 14 |
AMP. |
3 | 4 | 7 | 10 | 15 |
|
Product List (Total: 4 records) |
Data Source Page NO.: P.291,
WIRE
RANGE
A.W.G.
mm2 |
ITEM NO. |
DESCRIPTION |
TAB SIZE |

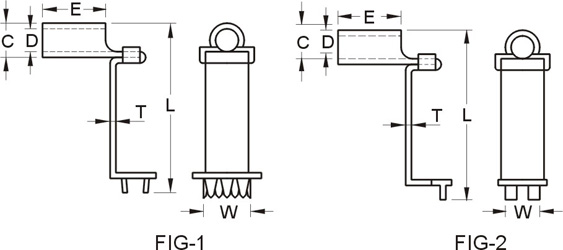

DIMENSION inch(mm) |
FIG |
Q'TY
BOX |
W
|
L
|
E
|
D
|
C
|
T
|
22-16
A.W.G.
1.25
mm2
|
|
ATC FUSE TAB |
.197
5.00 |
.209
5.3
|
.717
18.2
|
.197
5
|
0.106
2.700
|
.067
1.7
|
.016
.4
|
1 |
1000 |
|
ATC FUSE TAB |
.197
5.00 |
.209
5.3
|
.732
18.6
|
.197
5
|
0.130
3.300
|
.091
2.3
|
.016
.4
|
1 |
1000 |
16-14
A.W.G.
2
mm2
|
|
MINI FUSE TAB |
.110
2.80 |
.118
3
|
.531
13.5
|
.197
5
|
0.106
2.700
|
.067
1.7
|
.016
.4
|
2 |
1000 |
|
MINI FUSE TAB |
.110
2.80 |
.118
3
|
.551
14
|
.197
5
|
0.130
3.300
|
.091
2.3
|
.016
.4
|
2 |
1000 |
Data Source Page NO.: P.291,
|
|
|
|
