MAXIMUM ELECTRIC CURRENT:
A.W.G. |
22 | 20 | 18 | 16 | 14 | 12 | 10 |
AMP. |
9 | 12 | 17 | 18 | 30 | 35 | 50 |
MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: P.P.
TERMINAL MATERIAL: BRASS
|
Product List (Total: 3 records) |
Data Source Page NO.: P.307-1,
WIRE
RANGE
A.W.G.
mm2 |
ITEM NO. |
DIMENSION inch(mm) |
FIGURE |
COLOR |
Q'TY
BOX |
W
|
L
|

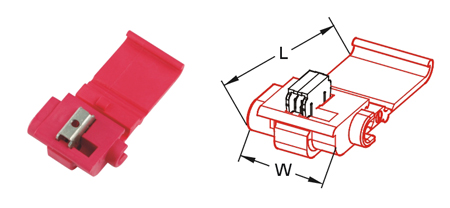

22-18
A.W.G.
0.5-0.75
mm2
|
|
.764
19.4
|
1.299
33
|
|
RED |
250 |

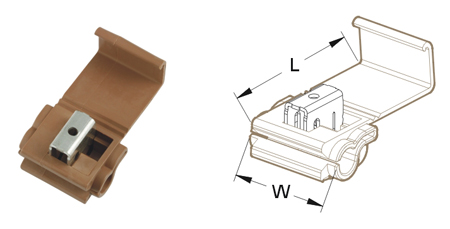

12-10 to 18-14
A.W.G.
4 to 0.75-2.5
mm2
|
|
.831
21.1
|
1.319
33.5
|
|
BROWN |
250 |

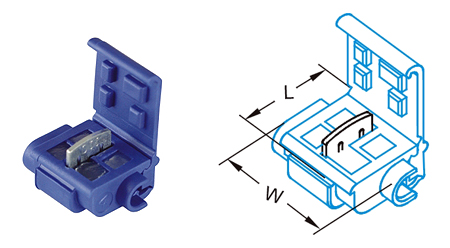

18-14
A.W.G.
0.75-2.5
mm2
|
|
.764
19.4
|
.595
15.1
|
|
BLUE |
250 |
|
|
|
|
