產(chǎn)品介紹

CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 222018161412108
AMP. 912171830355070

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW      8A.W.G.: RED

TERMINAL MATERIAL: COPPER

Product List (Total: 38 records)
Data Source Page NO.：P.385-14,  P.385-15,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. STUD SIZE DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX
BRAZED
SEAM		 BUTTED

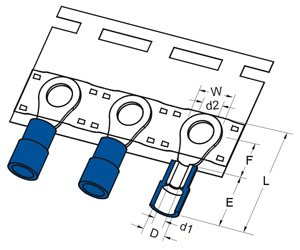

SEAM		 2 x d2 W F L E D d1 T
22-16
A.W.G.

0.5-1.5
mm2
RNYB1-3.2-T
RNY1-3.2-T
 #4 .126
3.2		 .217
5.5 		.197
5 		.728
18.5 		.433
11 		.157
4.0 		.067
1.7 		.03
.75
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011
 1000
RNYBS1-3.7-T
RNYS1-3.7-T
 #6 .146
3.7		 .217
5.5 		.197
5 		.728
18.5 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
RNYBM1-3.7-T
RNYM1-3.7-T
 #6 .146
3.7		 .26
6.6 		.248
6.3 		.803
20.4 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
RNYBL1-3.7-T
RNYL1-3.7-T
 #6 .146
3.7		 .315
8 		.276
7.3 		.858
21.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
RNYBS1-4-T
RNYS1-4-T
 #8 .169
4.3		 .26
6.6 		.248
6.3 		.803
20.4 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
RNYBL1-4-T
RNYL1-4-T
 #8 .169
4.3		 .315
8 		.276
7 		.858
21.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
RNYB1-5-T
RNY1-5-T
 #10 .209
5.3		 .315
8 		.276
7 		.858
21.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
RNYBL1-5-T
RNYL1-5-T
 #10 .209
5.3		 .457
11.6 		.433
11 		1.055
26.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
RNYB1-6-T
RNY1-6-T
 1/4 .252
6.4		 .457
11.6 		.433
11 		1.055
26.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
RNYB1-8-T
RNY1-8-T
 5/16 .331
8.4		 .457
11.6 		.433
11 		1.055
26.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
RNYB1-10-T
RNY1-10-T
 3/8 .413
10.5		 .535
13.6 		.547
13.9 		1.24
31.5 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
16-14
A.W.G.

1.5-2.5
mm2
RNYB2-3.2-T
RNY2-3.2-T
 #4 .126
3.2		 .26
6.6 		.189
4.8 		.74
18.8 		.433
11 		.177
4.5 		.091
2.3 		.031
.8
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF012
 1000
RNYBS2-3.7-T
RNYS2-3.7-T
 #6 .146
3.7		 .26
6.6 		.189
4.8 		.74
18.8 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
RNYBM2-3.7-T
RNYM2-3.7-T
 #6 .146
3.7		 .26
6.6 		.248
6.3 		.803
20.4 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
RNYBL2-3.7-T
RNYL2-3.7-T
 #6 .146
3.7		 .335
8.5 		.291
7.4 		.898
22.8 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
RNYBS2-4-T
RNYS2-4-T
 #8 .169
4.3		 .26
6.6 		.248
6.3 		.803
20.4 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
RNYBL2-4-T
RNYL2-4-T
 #8 .169
4.3		 .335
8.5 		.307
7.8 		.898
22.8 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
RNYBS2-5-T
RNYS2-5-T
 #10 .209
5.3		 .335
8.5 		.307
7.8 		.898
22.8 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
RNYBL2-5-T
RNYL2-5-T
 #10 .209
5.3		 .374
9.5 		.287
7.3 		.898
22.8 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
RNYB2-6-T
RNY2-6-T
 1/4 .252
6.4		 .472
12 		.433
11 		1.094
27.8 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
RNYB2-8-T
RNY2-8-T
 5/16 .331
8.4		 .472
12 		.433
11 		1.094
27.8 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
RNYB2-10-T
RNY2-10-T
 3/8 .413
10.8		 .535
13.6 		.547
13.9 		1.24
31.5 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000

Data Source Page NO.：P.385-14,  P.385-15,
