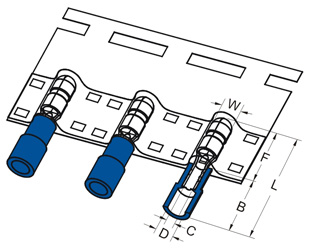

CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 34710152024

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
TERMINAL MATERIAL: BRASS

Product List (Total: 4 records)
Data Source Page NO.：P.385-27,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX
W F L E D T
22-16
A.W.G.

0.5-1.5
mm2
FRSNY1-156-T
 .154
3.9 		.276
7 		.886
22.5 		.433
11 		.157
4.0 		.016
.4
K.S.MODEL
KST2000C
WITH DIE INDEX
COLOR:RED
 1000
16-14
A.W.G.

1.5-2.5
mm2
FRSNY2-156-T
 .154
3.9 		.276
7 		.886
22.5 		.433
11 		.177
4.5 		.016
.4
K.S.MODEL
KST2000C
WITH DIE INDEX
COLOR:BLUE
 1000
FRSNY2-195-T
 .193
4.9 		.276
7 		.886
22.5 		.433
11 		.177
4.5 		.016
.4 		1000
12-10
A.W.G.

4-6
mm2
FRSNY5-195-T
 .193
4.9 		.276
7 		.965
24.5 		.512
13 		.248
6.3 		.018
.45
K.S.MODEL
KST2000C
WITH DIE INDEX
COLOR:YELLOW
 500

Data Source Page NO.：P.385-27,

Barrel Types


Terminals Type


Wire Range


Stud Size
