Product List (Total: 6 records) |
Data Source Page NO.: P.385-28,
WIRE
RANGE
A.W.G.
mm2 |
ITEM NO. |
NEMA TAB |
DIMENSION inch(mm) |

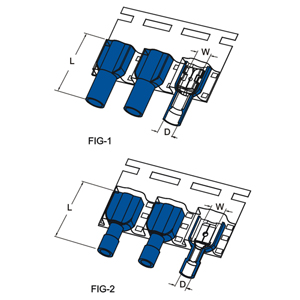

FIG |
CRIMPING
TOOL |
Q'TY
BOX |
W
|
F
|
L
|
B
|
D
|
T
|
22-16
A.W.G.
0.5-1.5
mm2
|
|
.032X.250
(0.8X6.35) |
.26
6.6
|
.287
7.3
|
.886
22.5
|
.472
12
|
.157
4.0
|
.016
.4
|
1 |
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD011 |
1000 |
|
.032X.250
(0.8X6.35) |
.25
6.35
|
.303
7.7
|
.965
24.5
|
.433
11
|
.157
4.0
|
.016
.4
|
2 |
1000 |
16-14
A.W.G.
1.5-2.5
mm2
|
|
.032X.250
(0.8X6.35) |
.26
6.35
|
.287
7.3
|
.906
23
|
.472
12
|
.177
4.5
|
.018
.45
|
1 |
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD012 |
1000 |
|
.032X.250
(0.8X6.35) |
.25
6.35
|
.303
7.7
|
.965
24.5
|
.433
11
|
.177
4.5
|
.031
.8
|
2 |
1000 |
12-10
A.W.G.
4-6
mm2
|
|
.032X.250
(0.8X6.35) |
.26
6.6
|
.287
7.3
|
.906
23
|
.472
12
|
.217
5.5
|
.018
.45
|
1 |
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD015 |
500 |
|
.032X.250
(0.8X6.35) |
.25
6.35
|
.303
7.7
|
1.024
26
|
.512
13
|
.217
5.5
|
.031
.8
|
2 |
500 |
|
|
|
|
