CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 2220181614
AMP. 3471015

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE

TERMINAL MATERIAL: BRASS

Product List (Total: 7 records)
Data Source Page NO.：P.385-30,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX

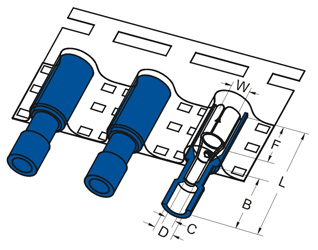

W F L B D T
22-16
A.W.G.

0.5-1.5
mm2
FRFNY1-156-T
 .154
3.9 		.276
7 		.992
25.2 		.433
11 		.157
4.0 		.016
.4
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD011
 1000
FRFNY1-180-T
 .173
4.4 		.279
7 		.992
25.2 		.433
11 		.157
4.0 		.016
.4 		1000
FRFNYL1-180-T
 .173
4.4 		.276
7 		1.232
31.3 		.433
11 		.157
4.0 		.016
.4 		1000
16-14
A.W.G.

1.5-2.5
mm2
FRFNY2-156-T
 .154
3.9 		.276
7 		.992
25.2 		.433
11 		.177
4.5 		.016
.4
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD012
 1000
FRRNY2-180-T
 .173
4.4 		.276
7 		.992
25.2 		.433
11 		.177
4.5 		.016
.4 		1000
FRFNYL2-180-T
 .173
4.4 		.276
7 		1.232
31.3 		.433
11 		.177
4.5 		.015
.4 		1000
FRFNY2-195-T
 .193
4.9 		.276
7 		1.063
27 		.433
11 		.177
4.5 		.016
.4 		500

Data Source Page NO.：P.385-30,
