CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 34710152024

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL MATERIAL: BRASS

Product List (Total: 9 records)
Data Source Page NO.：P.385-35,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. NEMA TAB DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX

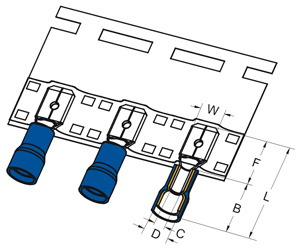

W F L B D T
22-16
A.W.G.

0.5-1.5
mm2
MDD1-110(5)-T
 .020X.110
(0.5X2.8)		 .11
2.8 		.256
6.5 		.756
19.2 		.413
10.5 		.150
3.8 		.02
.5
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011
 1000
MDD1-110(8)-T
 .032X.110
(0.8X2.8)		 .11
2.8 		.256
6.5 		.756
19.2 		.413
10.5 		.150
3.8 		.016
.4 		1000
MDD1-187(5)-T
 .020X.187
(0.5X4.75)		 .189
4.8 		.256
6.5 		.78
19.8 		.413
10.5 		.150
3.8 		.02
.5 		1000
MDD1-187(8)-T
 .032X.187
(0.8X4.75)		 .189
4.8 		.264
6.7 		.78
19.8 		.413
10.5 		.150
3.8 		.016
.4 		1000
MDD1-250-T
 .032X.250
(0.8X6.35)		 .25
6.35 		.303
7.7 		.858
21.8 		.413
10.5 		.150
3.8 		.016
.4 		1000
16-14
A.W.G.

1.5-2.5
mm2
MDD2-187(5)-T
 .020X.187
(0.5X4.75)		 .189
4.8 		.256
6.5 		.78
19.8 		.413
10.5 		.185
4.7 		.02
.5
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF012
 1000
MDD2-187(8)-T
 .032X.187
(0.8X4.75)		 .189
4.8 		.264
6.7 		.78
19.8 		.413
10.5 		.185
4.7 		.016
.4 		1000
MDD2-250-T
 .032X.250
(0.8X6.35)		 .25
6.35 		.303
7.7 		.858
21.8 		.413
10.5 		.185
4.7 		.016
.4 		1000
12-10
A.W.G.

4-6
mm2
MDD5-250-T
 .032X.315
(0.8X6.35)		 .25
6.35 		.303
7.7 		.945
24 		.512
13 		.244
6.2 		.016
.4
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF015
 500

Data Source Page NO.：P.385-35,
