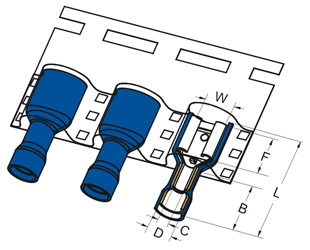

CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 34710152024

MAXIMUM ELECTRICAL RATING: 75°C 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL MATERIAL: BRASS

Product List (Total: 16 records)
Data Source Page NO.：P.385-38,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. NEMA TAB DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX
W F L B D T
22-16
A.W.G.

0.5-1.5
mm2
FDFD1-110(5)-T
 .020X.110
(0.5X2.8)		 .126
3.2 		.256
6.5 		.748
19 		.413
10.5 		.150
3.8 		.012
.3
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011
 1000
FDFD1-110(8)-T
 .032X.110
(0.8X2.8)		 .126
3.2 		.256
6.5 		.748
19 		.413
10.5 		.150
3.8 		.14
.35 		1000
FDFD1-187(5)-T
 .020X.187
(0.5X4.75)		 .197
5 		.252
6.4 		.807
20.5 		.413
10.5 		.150
3.8 		.014
.35 		1000
FDFD1-187(8)-T
 .032X.187
(0.8X4.75)		 .197
5 		.252
6.4 		.807
20.5 		.413
10.5 		.150
3.8 		.014
.35 		1000
FDFD1-205(5)-T
 .020X.205
(0.5X5.2)		 .224
5.7 		.228
5.8 		.795
20.2 		.413
10.5 		.150
3.8 		.014
.35 		1000
FDFD1-205(8)-T
 .032X.205
(0.8X5.2)		 .224
5.7 		.228
5.8 		.795
20.2 		.413
10.5 		.150
3.8 		.014
.35 		1000
FDFD1-250-T
 .032X.250
(0.8X6.35)		 .26
6.6 		.295
7.5 		.858
21.8 		.413
10.5 		.150
3.8 		.016
.4 		1000
16-14
A.W.G.

1.5-2.5
mm2
FDFD2-110(5)-T
 .020X.110
(0.5X2.8)		 .126
3.2 		.256
6.5 		.748
19 		.413
10.5 		.185
4.7 		.012
.3
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF012
 1000
FDFD2-110(8)-T
 .032X.110
(0.8X2.8)		 .126
3.2 		.256
6.5 		.748
19 		.413
10.5 		.185
4.7 		.012
.3 		1000
FDFD2-187(5)-T
 .020X.187
(0.5X4.75)		 .197
5 		.252
6.4 		.795
20.2 		.413
10.5 		.185
4.7 		.14
.35 		1000
FDFD2-187(8)-T
 .032X.187
(0.8X4.75)		 .197
5 		.252
6.4 		.795
20.2 		.413
10.5 		.185
4.7 		.014
.35 		1000
FDFD2-205(5)-T
 .020X.205
(0.5X5.2)		 .224
5.7 		.228
5.8 		.795
20.2 		.413
10.5 		.185
4.7 		.014
.35 		1000
FDFD2-205(8)-T
 .032X.205
(0.8X5.2)		 .224
5.7 		.228
5.8 		.795
20.2 		.413
10.5 		.185
4.7 		.014
.35 		1000
FDFD2-250-T
 .032X.250
(0.8X6.35)		 .26
6.6 		.295
7.5 		.874
22.2 		.413
10.5 		.185
4.7 		.016
.4 		1000
12-10
A.W.G.

4-6
mm2
FDFD5-250-T
 .032X.250
(0.8X6.35)		 .26
6.6 		.295
7.5 		.953
24.2 		.492
12.5 		.244
6.2 		.016
.4
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF015
 500
FDFD5-375-T
 .047X.370
(1.2X9.4)		 .394
10 		.472
12 		1.201
30.5 		.492
12.5 		.244
6.2 		.02
.5 		500

Data Source Page NO.：P.385-38,
