MAXIMUM ELECTRIC CURRENT:
A.W.G. |
22 | 20 | 18 | 16 | 14 |
AMP. |
3 | 4 | 7 | 10 | 15 |
MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.:
RED
16-14A.W.G.:
BLUE
DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL MATERIAL: BRASS
|
Product List (Total: 2 records) |
Data Source Page NO.: P.385-45,
WIRE
RANGE
A.W.G.
mm2 |
ITEM NO. |
NEMA TAB |
DIMENSION inch(mm) |
CRIMPING
TOOL |
Q'TY
BOX |

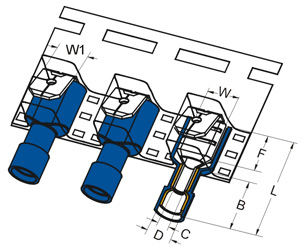

W
|
W1
|
F
|
F1
|
L
|
B
|
D
|
T
|
22-16
A.W.G.
0.5-1.5
mm2
|
|
.032X.250
(0.8X6.35) |
.26
6.6
|
.25
6.35
|
.315
8
|
.323
8.2
|
.846
21.5
|
.433
11
|
.157
4.0
|
.016
.4
|
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011 |
1000 |
16-14
A.W.G.
1.5-2.5
mm2
|
|
.032X.250
(0.8X6.35) |
.26
6.6
|
.25
6.35
|
.315
8
|
.323
8.2
|
.846
21.5
|
.433
11
|
.177
4.5
|
.016
.4
|
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF012 |
1000 |
|
|
|
|
