MAXIMUM ELECTRIC CURRENT:
A.W.G. |
22 | 20 | 18 | 16 | 14 |
AMP. |
3 | 4 | 7 | 10 | 15 |
MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-18A.W.G.:
RED
TERMINAL MATERIAL: BRASS
|
Product List (Total: 1 records) |
Data Source Page NO.: P.385-47,
WIRE
RANGE
A.W.G.
mm2 |
ITEM NO. |

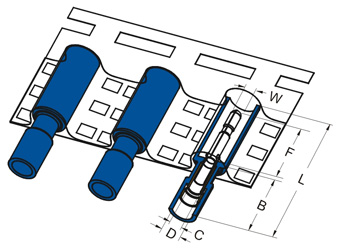

DIMENSION inch(mm) |
CRIMPING
TOOL |
Q'TY
BOX |
W
|
F
|
L
|
E
|
D
|
T
|
22-18
A.W.G.
0.5-0.75
mm2
|
|
.079
2
|
.472
12
|
1.063
27
|
.433
11
|
.138
3.5
|
.012
.3
|
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011 |
1000 |
|
|
|
|
