025 Series
025 RS UNSEALED
SPECIFICATIONS
Material |
Connector |
- |
Male Terninal |
BRASS |
Female Terninal |
- |
Operating Temperature Range |
-40°C ~ +100°C |
Voltage Drop |
5mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.3mm2 ~ 0.5mm2 (22AWG~20AWG) |
Maximum Electric Current |
10A |
|
|

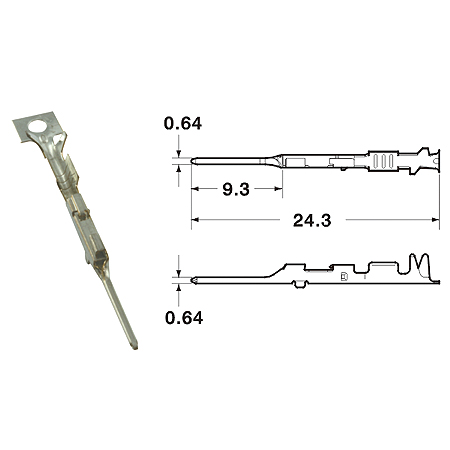

TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1101A0045 |
22-20 |
0.3-0.5 |
Brass |
Pre-Tin |
7000 |
CDM-96018-S |
CDT-96018-S |
|
|
|
|
