118 Series


  118 Series    118 SERIES


SPECIFICATIONS
Material Connector -
Male Terninal -
Female Terninal BRASS
Operating Temperature Range -40°C ~ +120°C
Voltage Drop 3mV/A
Isolation Resistance -
Dielectric Resistance -
Applicable Wire Size 0.2mm2 ~ 2.0mm2 (24AWG~14AWG)
Maximum Electric Current 25A

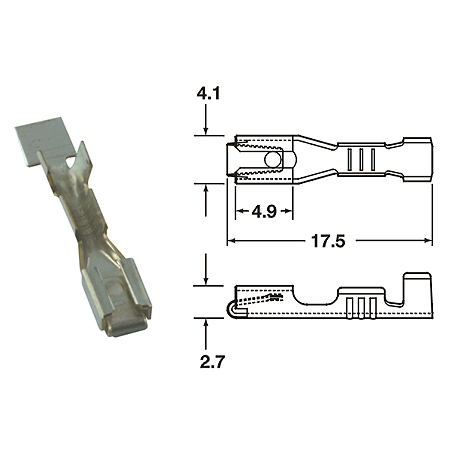

TERMINAL
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1201A0175 24-20 0.2-0.5 Brass Pre-Tin 4000 CDM-95020-S CDT-95020-S
1201A0177 18-14 0.85-2.0 Brass Pre-Tin 3000 CDM-95020-L CDT-95020-L


Barrel Types


Terminals Type


Wire Range


Stud Size
