250 Series
250 FLAG SERIES
SPECIFICATIONS
Material |
Connector |
- |
Male Terninal |
- |
Female Terninal |
BRASS |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
3mV/A |
Isolation Resistance |
100MΩ |
Dielectric Resistance |
1000V |
Applicable Wire Size |
0.3mm2 ~ 3.0mm2 (22AWG~12AWG) |
Maximum Electric Current |
30A |
|
|
TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |

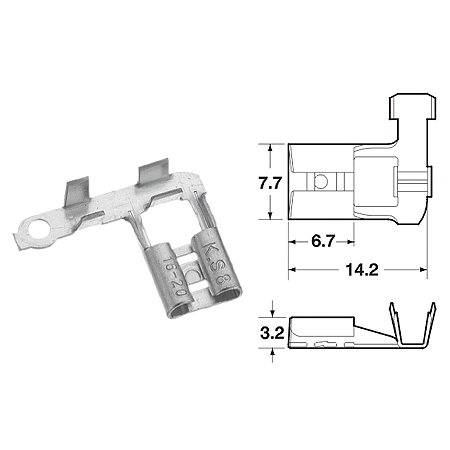

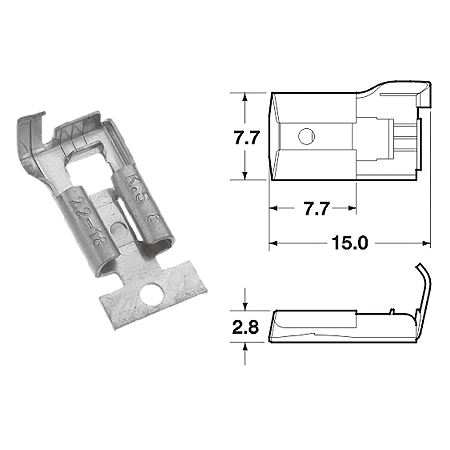

GM250-01B28 |
20-16 |
0.5-1.4 |
Brass |
Tin |
2500 |
CDM-93020-M |
CDT-93020-M |
GM250-01B98 |
20-16 |
0.5-1.4 |
Brass |
None |
2500 |
CDM-93020-M |
CDT-93020-M |
GM250-01BT8 |
20-16 |
0.5-1.4 |
Brass |
Pre-Tin |
2500 |
CDM-93020-M |
CDT-93020-M |
|
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |

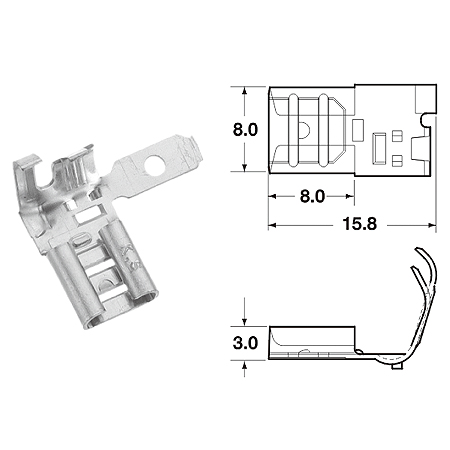

GL250-02B28 |
20-14 |
0.5-1.4 |
Brass |
Tin |
2500 |
CDM-93017-L |
CDT-93017-L |
GL250-02B98 |
20-14 |
0.5-1.4 |
Brass |
None |
2500 |
CDM-93017-L |
CDT-93017-L |
GL250-02BT8 |
20-14 |
0.5-1.4 |
Brass |
Pre-Tin |
2500 |
CDM-93017-L |
CDT-93017-L |
|
|

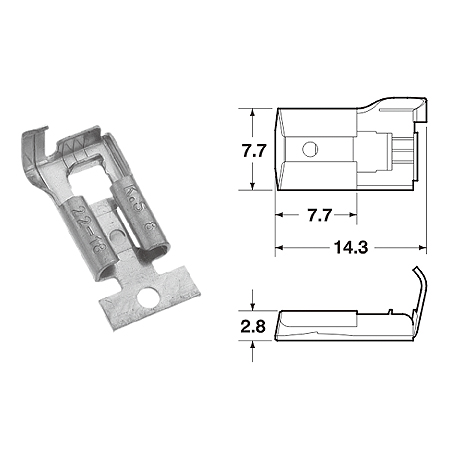

ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
GM250-03B28 |
22-18 |
0.3-0.8 |
Brass |
Tin |
1500 |
CDM-93021-M |
CDT-93021-M |
GM250-03B98 |
22-18 |
0.3-0.8 |
Brass |
None |
1500 |
CDM-93021-M |
CDT-93021-M |
GM250-03BT8 |
22-18 |
0.3-0.8 |
Brass |
Pre-Tin |
1500 |
CDM-93021-M |
CDT-93021-M |
|
|

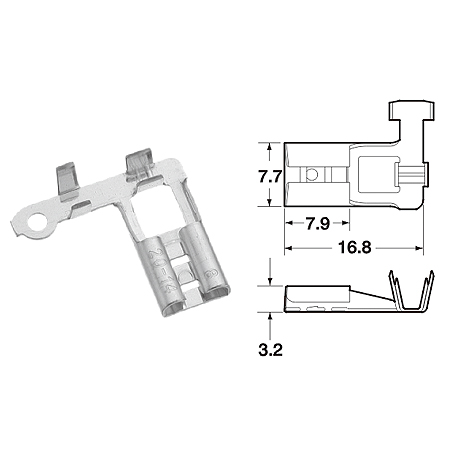

ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
◎GL250-04B26 |
20-14 |
0.5-2.0 |
Brass |
Tin |
1500 |
CDM-93046-L |
CDT-93046-L |
◎GL250-04B96 |
20-14 |
0.5-2.0 |
Brass |
None |
1500 |
CDM-93046-L |
CDT-93046-L |
◎GL250-04BT6 |
20-14 |
0.5-2.0 |
Brass |
Pre-Tin |
1500 |
CDM-93046-L |
CDT-93046-L |
|
UL/CUL ALL LISTED ◎:NOT UL AND C-UL LISTED |
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |

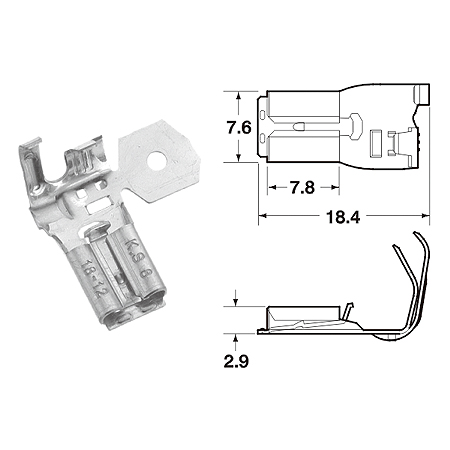

GJ250-05B28 |
18-12 |
0.8-3.0 |
Brass |
Tin |
1500 |
CDM-93022-J |
CDT-93022-J |
GJ250-05B98 |
18-12 |
0.8-3.0 |
Brass |
None |
1500 |
CDM-93022-J |
CDT-93022-J |
GJ250-05BT8 |
18-12 |
0.8-3.0 |
Brass |
Pre-Tin |
1500 |
CDM-93022-J |
CDT-93022-J |
|
|

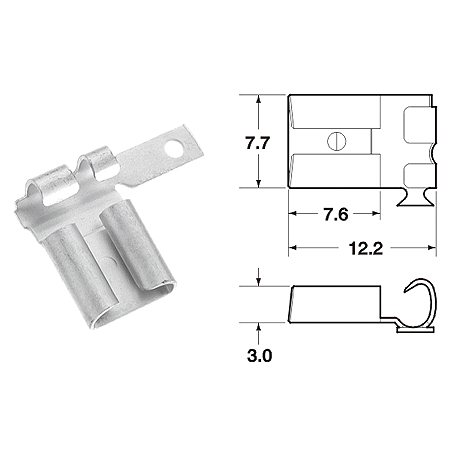

ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
GJ250-06BT8 |
18-14 |
0.8-2.0 |
Brass |
Pre-Tin |
1500 |
CDM-93047-J |
CDT-93047-J |
|
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
GM250-07B28 |
22-16 |
0.3-1.4 |
Brass |
Tin |
2500 |
CDM-94006-M |
CDT-94006-M |
GM250-07B98 |
22-16 |
0.3-1.4 |
Brass |
None |
2500 |
CDM-94006-M |
CDT-94006-M |
GM250-07BT8 |
22-16 |
0.3-1.4 |
Brass |
Pre-Tin |
2500 |
CDM-94006-M |
CDT-94006-M |
|
|
|
|
