產(chǎn)品介紹

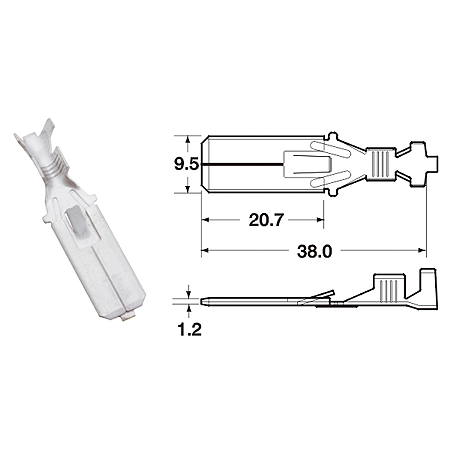

375 Series


  375 Series    375 SERIES


SPECIFICATIONS
Material Connector -
Male Terninal BRASS
Female Terninal -
Operating Temperature Range -30°C ~ +130°C
Voltage Drop 10mV/A
Isolation Resistance 100MΩ
Dielectric Resistance 1800V
Applicable Wire Size 3.0mm2 ~ 6.0mm2 (12AWG~10AWG)
Maximum Electric Current 40A

TERMINAL
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1100A0603 12-10 3.0 Brass None 2000 CDM-96028-L CDT-96028-L
1100A0604 12-10 6.0 Brass None 2000 CDM-96028-J CDT-96028-J
1105A0603 12-10 3.0 Brass Tin 1500 CDM-96028-L CDT-96028-L
1105A0604 12-10 6.0 Brass Tin 1500 CDM-96028-J CDT-96028-J


Barrel Types


Terminals Type


Wire Range


Stud Size
