AUTOMOBILE FUSE SERIES
SPECIFICATIONS
Material |
Connector |
- |
Male Terninal |
- |
Female Terninal |
BRASS OR COPPER ALLOY |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
5mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.3mm2 ~2.0mm2 (22AWG~14AWG) |
Maximum Electric Current |
25A |
|
|
TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |

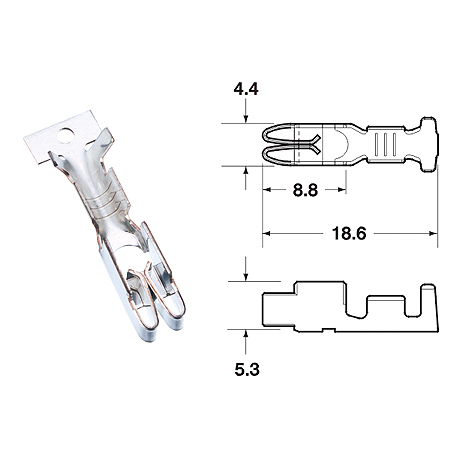

1211A0140 |
22-20 |
0.3-0.5 |
Copper Alloy |
Pre-Tin |
2000 |
CDM-94130-S |
CDT-94130-S |
1211A0142 |
18-14 |
0.85-2.0 |
Copper Alloy |
Pre-Tin |
2000 |
CDM-94130-L |
CDT-94130-L |
|
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |

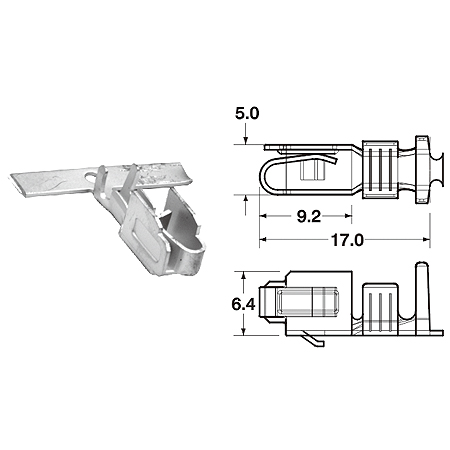

1200A0246 |
18-16 |
0.85-1.25 |
Brass |
None |
2000 |
CDM-97002-M |
CDT-97002-M |
1200A0247 |
16-14 |
1.25-2.0 |
Brass |
None |
1500 |
CDM-97002-L |
CDT-97002-L |
1201A0246 |
18-16 |
0.85-1.25 |
Brass |
Pre-Tin |
1500 |
CDM-97002-M |
CDT-97002-M |
1201A0247 |
16-14 |
1.25-2.0 |
Brass |
Pre-Tin |
1500 |
CDM-97002-L |
CDT-97002-L |
1205A0246 |
18-16 |
0.85-1.25 |
Brass |
Tin |
2000 |
CDM-97002-M |
CDT-97002-M |
1205A0247 |
16-14 |
1.25-2.0 |
Brass |
Tin |
1500 |
CDM-97002-L |
CDT-97002-L |
|
|
|
|
