RING TONGUE TERMINALS
SPECIFICATIONS
Material |
Connector |
- |
Female Terninal |
BRASS OR FE |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
5mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.3mm2 ~6.0mm2 (22AWG~10AWG) |
Maximum Electric Current |
40A |
|
|
TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
RM030-01B2 |
22-16 |
0.3-1.4 |
Brass |
Tin |
10000 |
CDM-96012-M |
CDT-96012-M |
RM030-01B9 |
22-16 |
0.3-1.4 |
Brass |
None |
8000 |
CDM-96012-M |
CDT-96012-M |
RM030-01BT |
22-16 |
0.3-1.4 |
Brass |
Pre-Tin |
10000 |
CDM-96012-M |
CDT-96012-M |
|
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
RM040-01B2 |
22-16 |
0.3-1.4 |
Brass |
Tin |
10000 |
CDM-96017-M |
CDT-96017-M |
RM040-01B9 |
22-16 |
0.3-1.4 |
Brass |
None |
7000 |
CDM-96017-M |
CDT-96017-M |
RM040-01BT |
22-16 |
0.3-1.4 |
Brass |
Pre-Tin |
7000 |
CDM-96017-M |
CDT-96017-M |
|
|

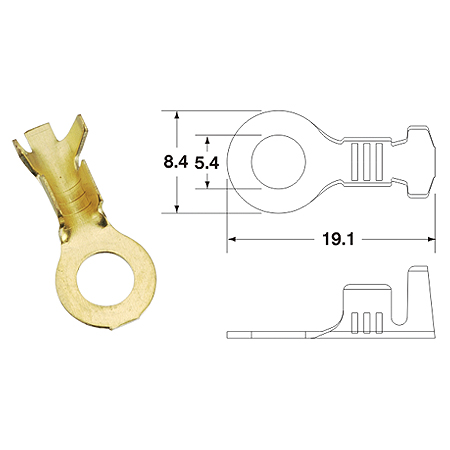

ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
RM050-01B2 |
22-16 |
0.3-1.4 |
Brass |
Tin |
7000 |
CDM-96017-M |
CDT-96017-M |
RM050-01B9 |
22-16 |
0.3-1.4 |
Brass |
None |
7000 |
CDM-96017-M |
CDT-96017-M |
RM050-01BT |
22-16 |
0.3-1.4 |
Brass |
Pre-Tin |
5000 |
CDM-96017-M |
CDT-96017-M |
|
|

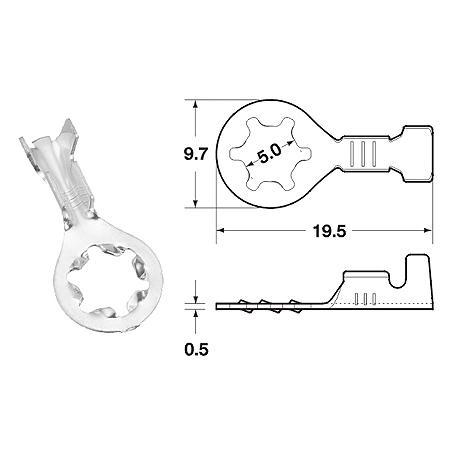

ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
RL050-03B2 |
18-14 |
0.85-2.0 |
Brass |
Tin |
7000 |
CDM-96017-L |
CDT-96017-L |
RL050-03B9 |
18-14 |
0.85-2.0 |
Brass |
None |
7000 |
CDM-96017-L |
CDT-96017-L |
RL050-03BT |
18-14 |
0.85-2.0 |
Brass |
Pre-Tin |
7000 |
CDM-96017-L |
CDT-96017-L |
|
|

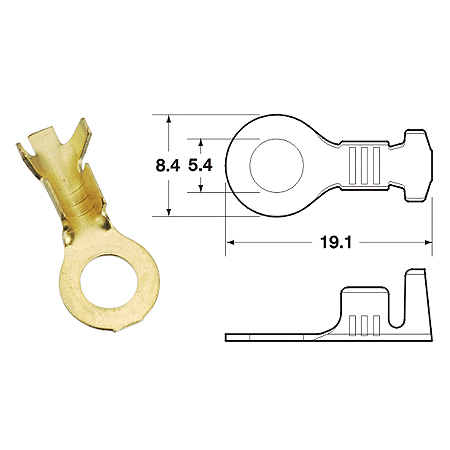

ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
RM050-02B2 |
20-16 |
0.5-1.4 |
Brass |
Tin |
5000 |
CDM-98018-M |
CDT-98018-M |
RM050-02B9 |
20-16 |
0.5-1.4 |
Brass |
None |
5000 |
CDM-98018-M |
CDT-98018-M |
RM050-02BT |
20-16 |
0.5-1.4 |
Brass |
Pre-Tin |
5000 |
CDM-98018-M |
CDT-98018-M |
|
|
|
|
Barrel Types
Terminals Type
Wire Range
Stud Size
