  Other    LIGHTING SERIES


SPECIFICATIONS
Material Connector -
Female Terninal PHOSPHOR BRONZE OR BRASS
Operating Temperature Range -40°C ~ +120°C
Voltage Drop 5mV/A
Isolation Resistance -
Dielectric Resistance -
Applicable Wire Size 0.3mm2 ~0.85mm2 (22AWG~18AWG)
Maximum Electric Current 15A

TERMINAL
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2

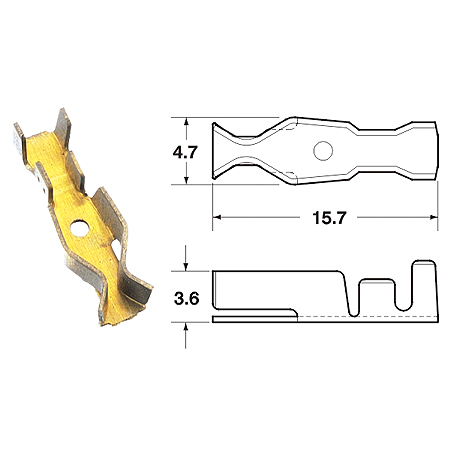

1020A0001 20-18 0.5-0.85 Phosphor Bronze None 1500 CDM-98029-M CDT-98029-M

ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1020A0005 20-18 0.5-0.85 Phosphor Bronze None 4000 CDM-98030-S CDT-98030-S

ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1020A0010 20-18 0.5-0.85 Phosphor Bronze None 4000 CDM-98031-S CDT-98031-S

ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1020A0015 20-18 0.5-0.85 Phosphor Bronze None 1000 CDM-98032-S CDT-98032-S

ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
LS000-02B9 22-20 0.3-0.5 Brass None - CDM-98027-S CDT-98027-S

ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
LS000-02P9 22-20 0.3-0.5 Phosphor Bronze None - CDM-98028-S CDT-98028-S

ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1000A0390L - - Brass None - - -

ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1000A0391L - - Phosphor Bronze None - - -


Barrel Types


Terminals Type


Wire Range


Stud Size
