060 Series
060 SMTO SWP SERIES UNSEALED
SPECIFICATIONS
Material |
Connector |
- |
Male Terninal |
COPPER ALLOY |
Female Terninal |
COPPER ALLOY |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
3mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.3mm2 ~ 2.0mm2 (22AWG~14AWG) |
Maximum Electric Current |
25A |
|
|

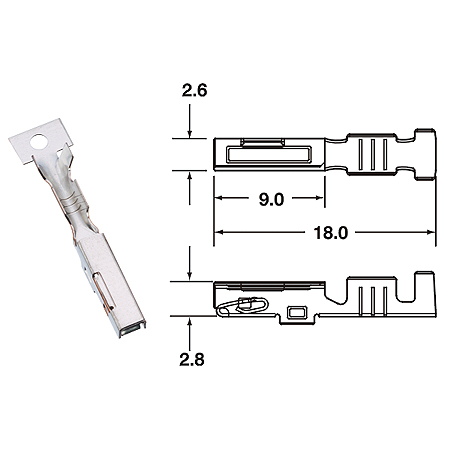

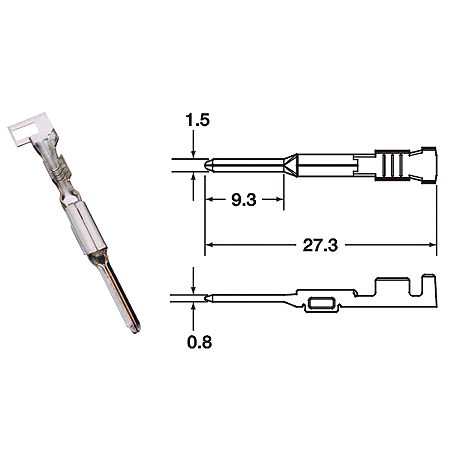

TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1111A0020 |
22-20 |
0.3-0.5 |
Copper Alloy |
Pre-Tin |
5000 |
CDM-94123-S |
CDT-94123-S |
1111A0021 |
18-16 |
0.85-1.25 |
Copper Alloy |
Pre-Tin |
5000 |
CDM-94123-M |
CDT-94123-M |
1111A0022 |
14 |
2.0 |
Copper Alloy |
Pre-Tin |
5000 |
CDM-94123-L |
CDT-94123-L |
|
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1211A0020 |
22-20 |
0.3-0.5 |
Copper Alloy |
Pre-Tin |
5000 |
CDM-95005-S |
CDT-95005-S |
1211A0021 |
18-16 |
0.85-1.25 |
Copper Alloy |
Pre-Tin |
4000 |
CDM-95005-M |
CDT-95005-M |
1211A0022 |
14 |
2.0 |
Copper Alloy |
Pre-Tin |
4000 |
CDM-95005-L |
CDT-95005-L |
|
|
|
|
Barrel Types
Terminals Type
Wire Range
Stud Size
