060 Series
060 SMTO SL SERIES SEALED
SPECIFICATIONS
Material |
Connector |
- |
Male Terninal |
- |
Female Terninal |
COPPER ALLOY |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
3mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.3mm2 ~ 2.0mm2 (22AWG~14AWG) |
Maximum Electric Current |
25A |
|
|

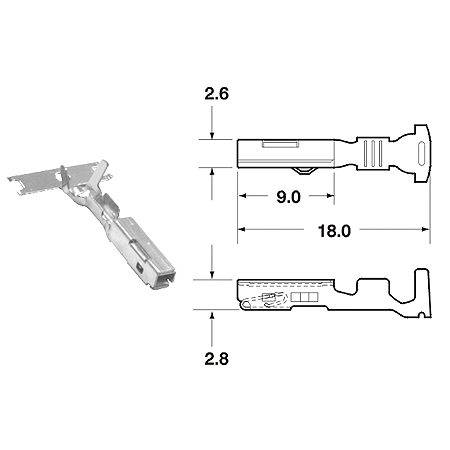

TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1211A0025 |
22-20 |
0.3-0.5 |
Copper Alloy |
Pre-Tin |
4000 |
CDM-94105-S |
CDT-94105-S |
1211A0026 |
18 |
0.85 |
Copper Alloy |
Pre-Tin |
4000 |
CDM-94105-M |
CDT-94105-M |
1211A0027 |
16-14 |
1.25-2.0 |
Copper Alloy |
Pre-Tin |
4000 |
CDM-94105-L |
CDT-94105-L |
|
|
|
|
