060 Series
060 AM M-TIMER2 SERIES SEALED
SPECIFICATIONS
Material |
Connector |
- |
Male Terninal |
- |
Female Terninal |
COPPER ALLOY STAINLESS STEEL |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
5mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.5mm2 ~ 0.85mm2 (22AWG~18AWG) |
Maximum Electric Current |
15A |
|
|

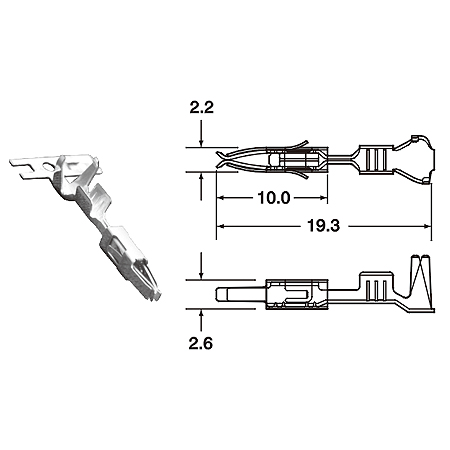

TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1211A0161 |
22-18 |
0.5-0.85 |
Copper Alloy Stainless Steel |
Pre-Tin |
3500 |
CDM-95024-M |
CDT-95024-M |
|
|
|
|
