090 Series
090 KST B TYPE SERIES UNSEALED
SPECIFICATIONS
Material |
Connector |
- |
Male Terninal |
BRASS |
Female Terninal |
- |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
3mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.3mm2 ~ 2.0mm2 (22AWG~14AWG) |
Maximum Electric Current |
25A |
|
|

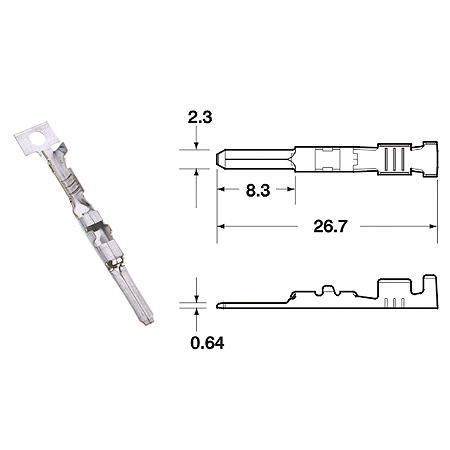

TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1101A0000 |
22-20 |
0.3-0.5 |
Brass |
Pre-Tin |
5000 |
CDM-94116-S |
CDT-94116-S |
1101A0001 |
18-16 |
0.85-1.25 |
Brass |
Pre-Tin |
5000 |
CDM-94116-M |
CDT-94116-M |
1101A0002 |
14 |
2.0 |
Brass |
Pre-Tin |
5000 |
CDM-94116-L |
CDT-94116-L |
|
|
|
|
