090 Series
090 SMTO TS、DL、SL SERIES UNSEALED
SPECIFICATIONS
Material |
Connector |
- |

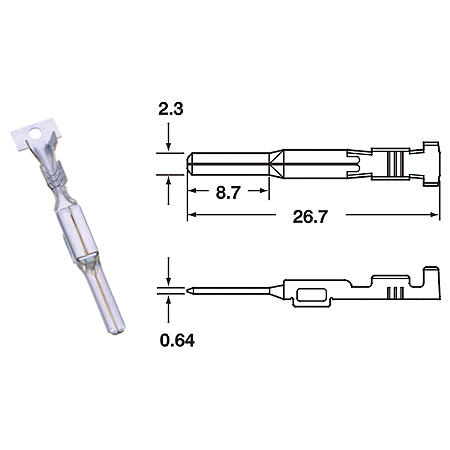

Male Terninal |
BRASS |

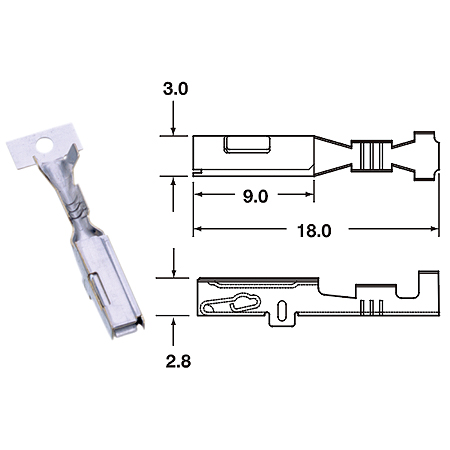

Female Terninal |
BRASS OR COPPER ALLOY |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
3mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.3mm2 ~ 2.0mm2 (22AWG~14AWG) |
Maximum Electric Current |
25A |
|
|
TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1101A0010 |
22-20 |
0.3-0.5 |
Brass |
Pre-Tin |
5000 |
CDM-94120-S |
CDT-94120-S |
1101A0011 |
20-16 |
0.5-1.25 |
Brass |
Pre-Tin |
5000 |
CDM-94120-M |
CDT-94120-M |
1101A0012 |
14 |
2.0 |
Brass |
Pre-Tin |
5000 |
CDM-94120-L |
CDT-94120-L |
|
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1201A0010 |
22-20 |
0.3-0.5 |
Brass |
Pre-Tin |
5000 |
CDM94119-S |
CDT-94119-S |
1201A0011 |
20-16 |
0.5-1.25 |
Brass |
Pre-Tin |
4000 |
CDM-94119-M |
CDT-94119-M |
1201A0012 |
14 |
2.0 |
Brass |
Pre-Tin |
4000 |
CDM-94119-L |
CDT-94119-L |
1211A0012 |
14 |
2.0 |
Copper Alloy |
Pre-Tin |
4000 |
CDM-94119-L |
CDT-94119-L |
|
|
|
|
