090 Series
090 SMTO TS SERIES SEALED
SPECIFICATIONS
Material |
Connector |
- |
Male Terninal |
BRASS |
Female Terninal |
BRASS OR COPPER ALLOY |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
3mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.3mm2 ~ 1.25mm2 (22AWG~16AWG) |
Maximum Electric Current |
18A |
|
|
TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |

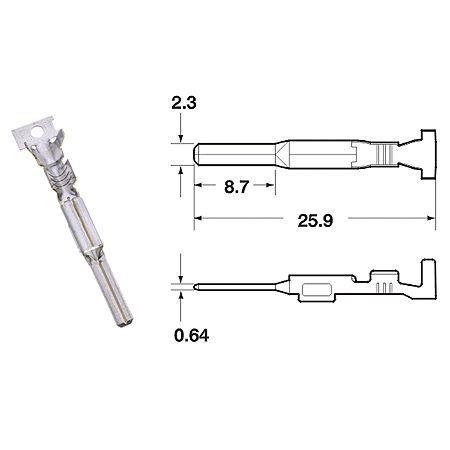

1101A0015 |
22-20 |
0.3-0.5 |
Brass |
Pre-Tin |
4000 |
CDM-94121-S |
CDT-94121-S |
1101A0016 |
20-16 |
0.5-1.25 |
Brass |
Pre-Tin |
4000 |
CDM-94121-M |
CDT-94121-M |
|
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |

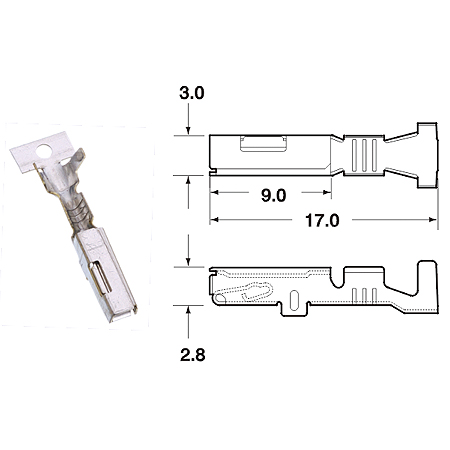

1201A0015 |
22-20 |
0.3-0.5 |
Brass |
Pre-Tin |
4000 |
CDM-93109-S |
CDT-93109-S |
1201A0016 |
18-16 |
0.85-1.25 |
Brass |
Pre-Tin |
4000 |
CDM-93109-M |
CDT-93109-M |
1211A0015 |
22-20 |
0.3-0.5 |
Copper Alloy |
Pre-Tin |
4000 |
CDM-93109-S |
CDT-93109-S |
1211A0016 |
18-16 |
0.85-1.25 |
Cooper Alloy |
Pre-Tin |
4000 |
CDM-93109-M |
CDT-93109-M |
|
|
|
|
