090 Series
090 SMTO 91RS SERIES SEALED
SPECIFICATIONS
Material |
Connector |
- |
Male Terninal |
PHOSPHOR BRONZE |
Female Terninal |
COPPER ALLOY |
Operating Temperature Range |
-40°C ~ +120°C |
Voltage Drop |
3mV/A |
Isolation Resistance |
- |
Dielectric Resistance |
- |
Applicable Wire Size |
0.3mm2 ~ 1.25mm2 (22AWG~16AWG) |
Maximum Electric Current |
18A |
|
|

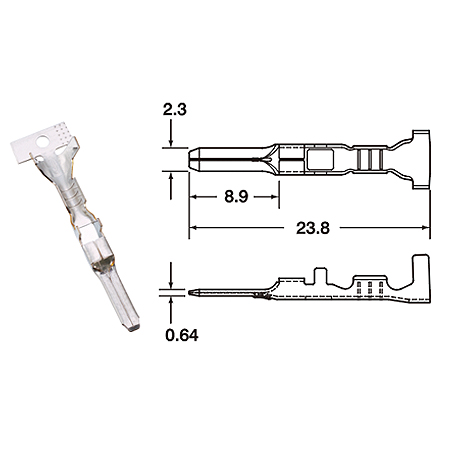

TERMINAL
|
ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1121A0075 |
22-20 |
0.3-0.5 |
Phosphor Bronze |
Pre-Tin |
3000 |
CDM-95003-S |
CDT-95003-S |
1121A0076 |
18-16 |
0.85-1.25 |
Phosphor Bronze |
Pre-Tin |
3000 |
CDT-95003-M |
CDT-95003-M |
|
|

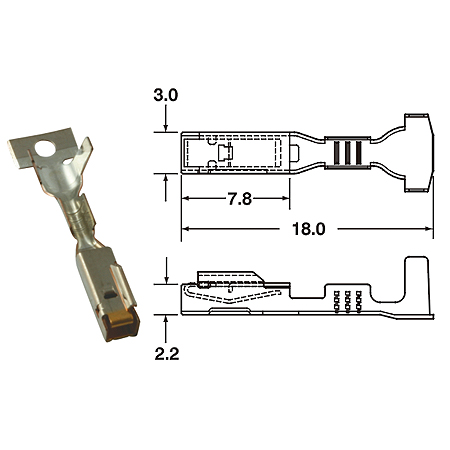

ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
A.W.G. |
mm2 |
1210A0230 |
22-20 |
0.3-0.5 |
Copper Alloy |
None |
3000 |
CDM-96014-S |
CDT-96014-S |
1211A0230 |
22-20 |
0.3-0.5 |
Copper Alloy |
Pre-Tin |
3000 |
CDM-96014-S |
CDT-96014-S |
1213A0230 |
22-20 |
0.3-0.5 |
Copper Alloy |
Nickel-Gold |
3000 |
CDM-96014-S |
CDT-96014-S |
1216A0230 |
22-20 |
0.3-0.5 |
Copper Alloy |
Pre-nickel-gold |
3000 |
CDM-96014-S |
CDT-96014-S |
|
|
|
|
